Load Cells

Load Cells
Load Cells
Product Code : LTM01
Product Description
PRC offers various types of Load Cells for universal applications. These load cells can be used in compression mode as well as in tensile mode hence they are ideal for Universal testing machines, compression testing machine & tensile testing machines. These are also suitable for medium level of load measurement in any application. The entire range of products is manufactured using special steel that is sourced from reliable vendors. Further, range of products is checked for quality before being supplied at client’s end, thus assuring that they receive only a flawless range of load cells.

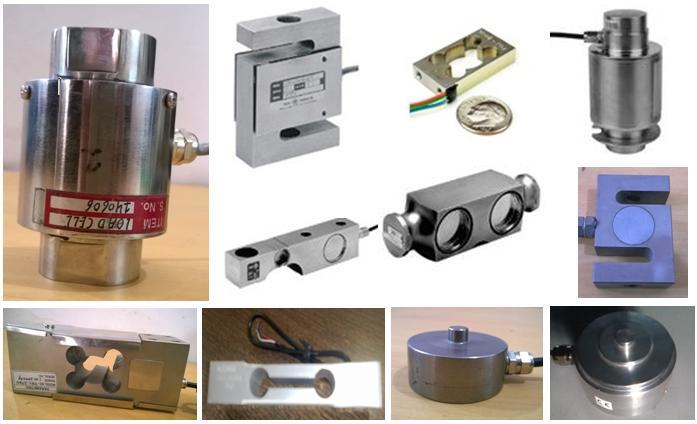

PRC offers following load cells;
  • S Type - 10 Kg to 20 Tons
  • Compression Type - 50-500 Tons
  • Button Type - 100 Kg to 100 Tons
  • Shear Beam Type - 10 Tons to 50 Tons
  • Platform Type - 1 Kg to 1 Ton
  • Pan Cake Type - 50 Kg to 50 Tons

Common technical features for load cells;

  • Rated Output (mV/V) - 2.0002
  • Non-linearity (% FS) - 0.020
  • Hysteresis (% FS) - 0.020
  • Repeatability (% FS) - 0.020
  • Creep (% F.S/30 min) - 0.019
  • Temp. effect on zero (% FS/10°C) - 0.016
  • Temp. effect on span (% FS/10°C) - 0.019
  • Zero balance (% FS) - ±1
  • Input impedance (Ω) – 350 ± 5
  • Output impedance (Ω) – 350 ± 5
  • Insulation resistance (MΩ) - ≥ 5000 (50 V DC)
  • Excitation voltage (V DC) - 9~12
  • Allowed excitation voltage (V DC) - 5~18
  • Compensated temp. Range (°C) - 10°C~+ 40°C
  • Operating temp. Range (°C) - -20°C~+55°C
  • Safe overload (% FS) – 120
  • Ultimate Overload (% FS) – 150
