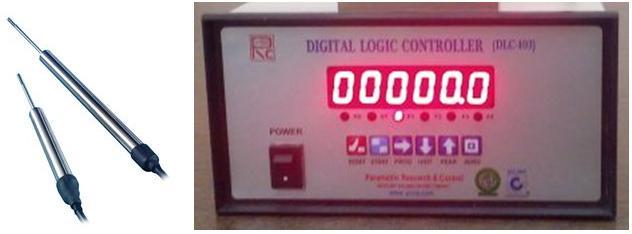

LVDT & Displacement Indicator

LVDT & Displacement Indicator
LVDT & Displacement Indicator
Send Inquiry
Product Code : LTM05
Brand Name : PARAMETRIC RESEARCH & CONTROl
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit
  • Price
  • 18500 INR/Unit
Product Specifications
  • Dimension(L*W*H)
  • 600 x 600 x 290 Millimeter (mm)
  • Weight
  • 50-100 Kilograms (kg)
  • Power
  • 220 Watt (w)
  • Material
  • Iron and Aluminium
  • Voltage
  • 220 Volt (v)
Product Description

PRC offers wide range of LVDT to suit various laboratory requirement pertaining to the displacement measurement. These LVDT's are available in two options such as AC to AC and DC to DC voltage/current.

Technical Specification:

  • Application – Linear position measurement
  • Excitation voltage – 2-10 V AC/DC
  • Stroke – 5 mm to 500 mm
  • Hysteresis (mm) - 0.25
  • Repeatability (mm) - 0.08
  • Linearity (% FS) - ± 0.05 / ± 0.10
  • Material of construction – SS / Aluminum
  • Housing – Suitable housing provided
  • Protection – IP-66
  • Operating temp. Range (°C) - -20°C~+55°C

Digital Displacement Indicators

  • Application- Linear measurement
  • Display- 5 / 6 Digit 7 Segment display.
  • Inputs- LVDT
  • Calibration- Auto Calibration
  • Output- 2 Set point Relay output / 1 Relay output
  • Protection- Against Over travel
  • On Screen display- Displacement
  • Function mode- Unit conversion & Peak hold function
  • Keypad- 4 keys to enter parameters.


Trade Information
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Supply Ability
  • 1000 Unit Per Month
  • Delivery Time
  • 1 Days
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
